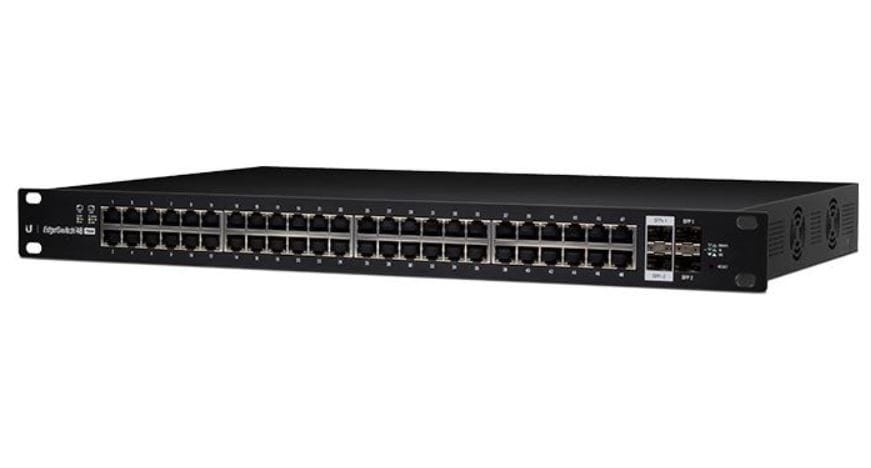

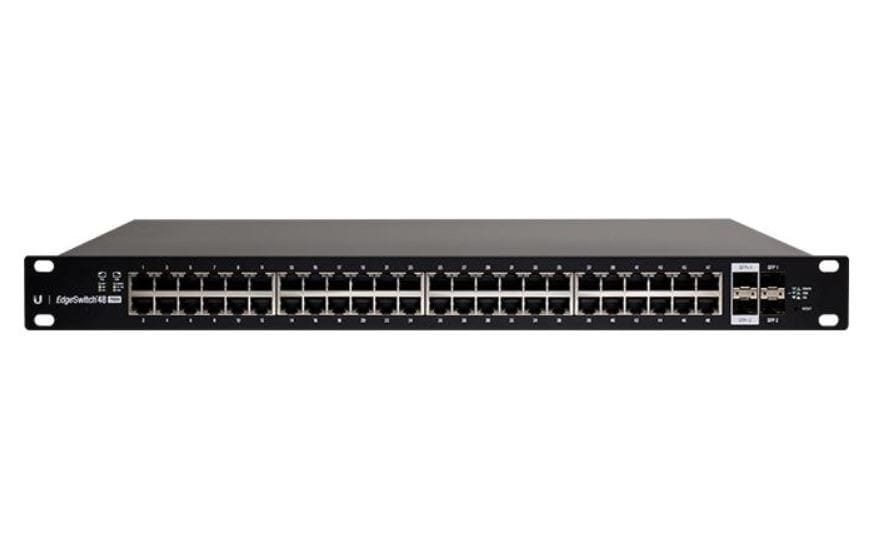

UBIQUITI Przełącznik 48x1GbE 2SFP i 2SFP+ ES-48-750W

EAN: 0810354022289
Gwarancja: 12 miesięcy
Kod dostawcy: ES-48-750W EU
Klasa przełącznika: Zarządzalny
Zastosowanie: Średnie i duże firmy
Warstwa przełączania: L2, L3
Architektura sieci: GigabitEthernet
Liczba portów 10/100/1000 MBps: 48
Liczba portów SFP: 2
Liczba portów SFP+: 2
Przepustowość: 140 GB/s
Prędkość przekazywania: 104.16 Mpps
Liczba grup VLAN: 4093
Obsługiwane protokoły i standardy: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
QoS: Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on: Time-Based ACL Source/Destination IP Address TCP/UDP Source/Destination Port IP Protocol Type Type of Service (ToS) or Differentiated Services (DSCP) Field Source/Destination MAC Address EtherType IEEE 802.1p User Priority VLAN ID RFC 1858: Security Considerations for IP Fragment Filtering Optional ACL Rule Attributes Assign Flow to a Specific Class of Service (CoS) Queue Redirect Matching Traffic Flows Differentiated Services (DiffServ) Classify Traffic Based on Same Criteria as ACLs Mark the IP DSCP or Precedence Header Fields, Optional Police the Flow to a Specific Rate with Two-Color Aware Support RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers RFC 2475: An Architecture for Differentiated Services RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group RFC 3246: An Expedited Forwarding PHB RFC 3260: New Terminology and Clarifications for DiffServ Class of Service (CoS) Queue Mapping Configuration AutoVoIP: Automatic CoS Settings for VoIP IP DSCP-to-Queue Mapping Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted) Interface Egress Shaping Rate Strict Priority versus Weighted Scheduling per Queue
Zarządzanie, monitorowanie, konfiguracja: Web UI Industry-Standard CLI IPv6 Management Password Management Autoinstall Support for Firmware Images and Configuration Files SNMP v1, v2, and v3 SSH 1.5 and 2.0 SSL 3.0 and TLS 1.0 Secure Copy (SCP) Telnet (Multi-Session Support)
Funkcje L2: Broadcast Storm Recovery Broadcast/Multicast/Unknown Unicast Storm Recovery DHCP Snooping IGMP Snooping Querier Independent VLAN Learning (IVL) Support Jumbo Ethernet Frame Support Port MAC Locking Port Mirroring Protected Ports Static MAC Filtering TACACS+ Voice VLANs Unauthenticated VLAN Internal 802.1X Authentication Server
Typ obudowy: Rack
Zasilacz: Wewnętrzny
Zasilanie: Zasilacz AC/DC, wewnętrzny, 750W DC
Wymiary: 485 x 43.7 x 374.6 mm
Waga: 6.5 kg
Pozostałe parametry: Certyfikaty: CE, FCC, IC
Informacje o gwarancji: Gwarancja 12  miesięcy liczona od daty sprzedaży
